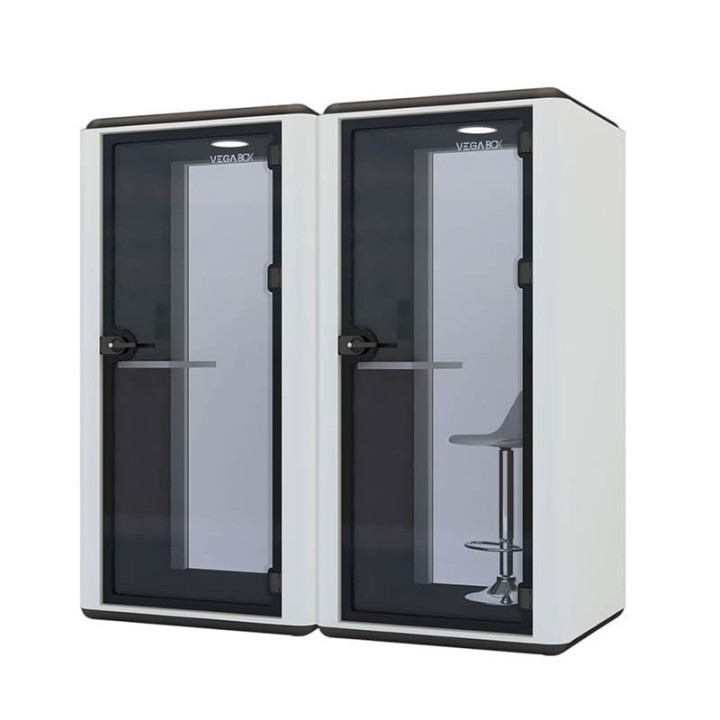

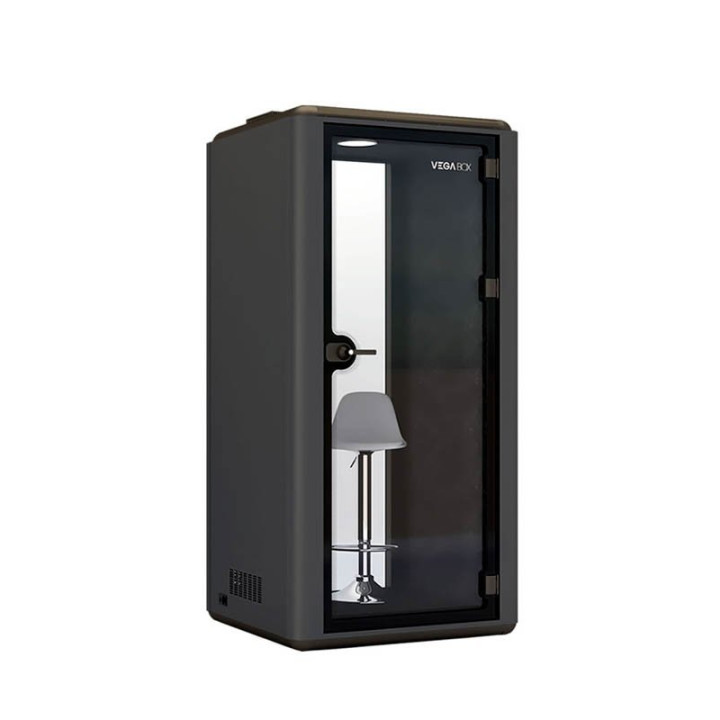

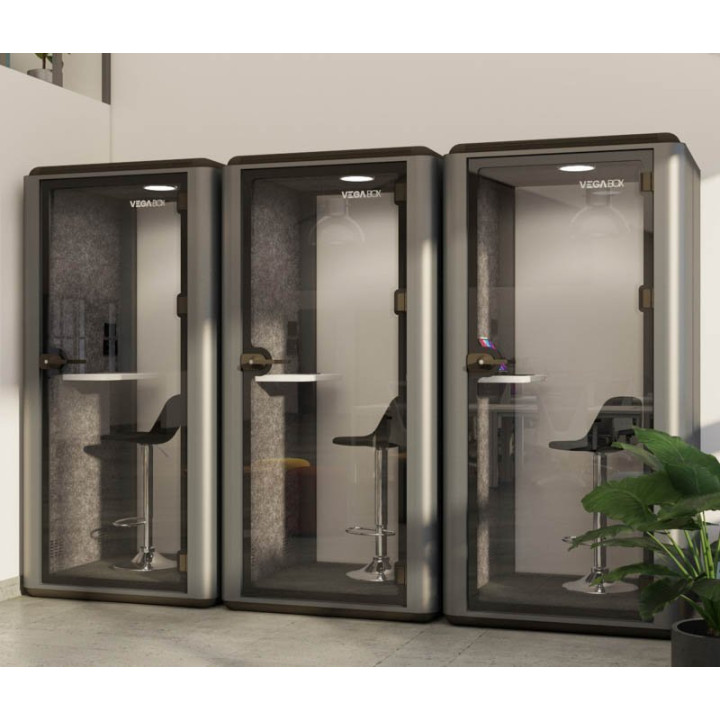

Euromof Vega 1 acoustic booth.
Key features
Dimensions

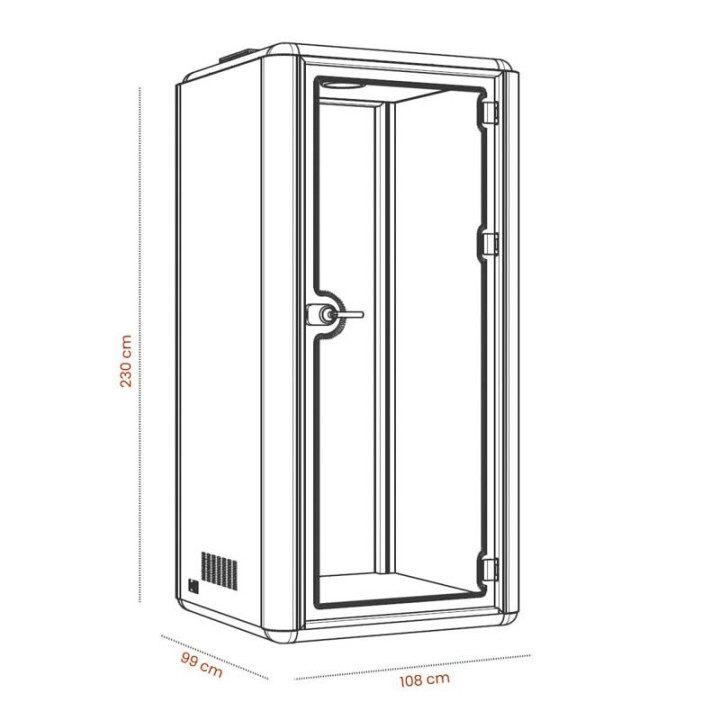

- External dimensions: 108 x 99 x 230 cm (LxDxH)
- Internal dimensions: 95 x 96 x 200 cm (LxDxH)
- Table dimensions: 60 x 35 cm (LxW)
- Table height: 102 cm

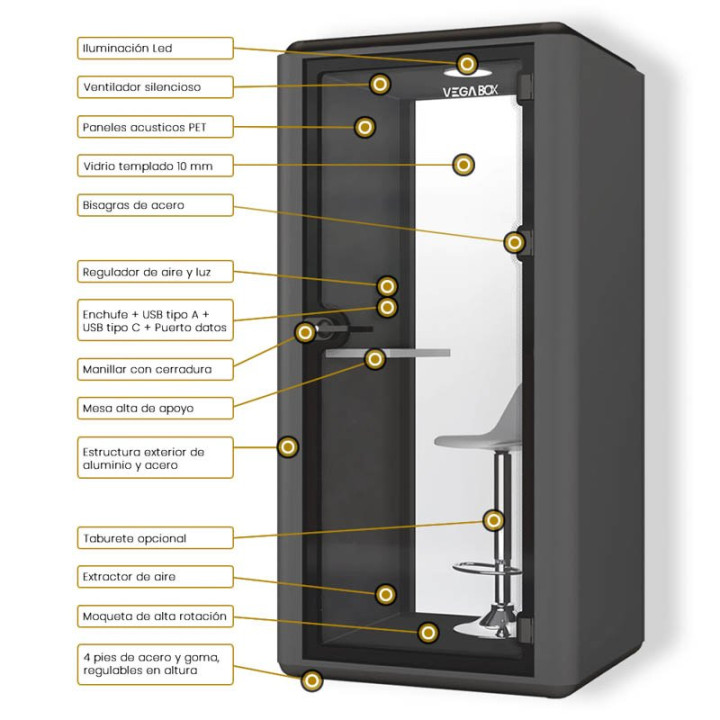

Materials and finishes
- Extruded aluminum alloy and high quality 2mm thick cold rolled steel panels. Electrostatic paint coating
- epoxy finish in white or anthracite color.
- Steel and aluminum frames, filled with thermal and acoustic insulating foam panels.
- 16mm reinforced plywood on the floor on a steel frame and beams. Upholstered with high-rotation, short-pile, antistatic carpet.
- 10mm clear tempered glass on aluminium and steel frame.
- 25 mm thick MDF board. White powder paint finish, hidden metal supports.
- connection to the steel structure.
- *The finishes shown in the photographs may have a slight variation in color/tone compared to the originals.
Ergonomics and mechanisms

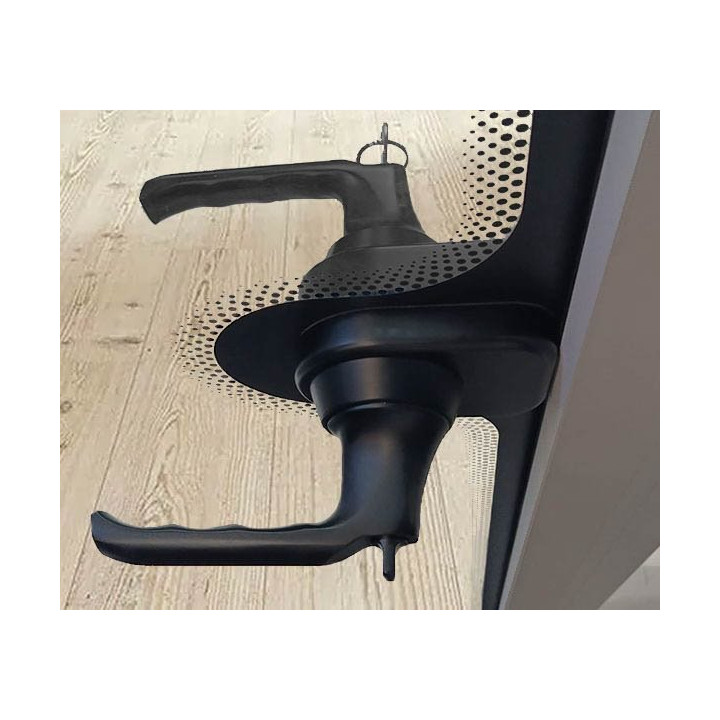

- 10mm clear tempered glass with acoustic enhancement properties, mounted in aluminium frame. Lockable crank handle, latch mechanism and internal latch.

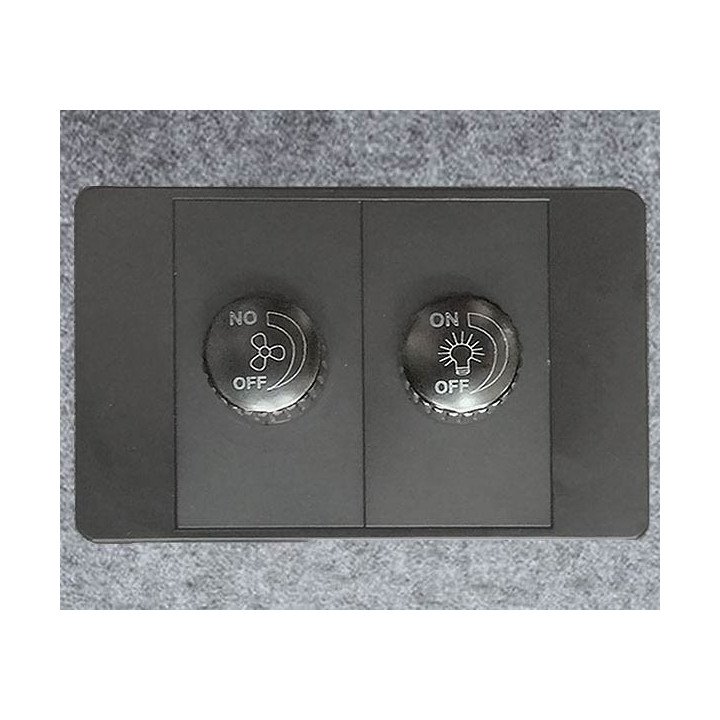

- Silent ceiling fan with adjustable flow intensity + extractor. Approximate air flow rate 130 m3/h.
Configuration and use
- Stool not included, optional for €90 + VAT.
Delivery and condition
- Optimized for easy assembly. Can be assembled and disassembled in 35 minutes with 2 people
- Delivered disassembled with assembly on the peninsula
- Condition: New.
Other details
- Measures
- Floor area: 1.06 m²
- Clear door passage: 80 cm
- Total Weight: 265 Kg
- External structure
- Internal structure
- Visible cladding with high-density PET sheets of 12 and 9 mm with high absorption quality and acoustic improvement.
- anti-stain.
- Door
- Rear wall
- Table/shelf
- Lightning
- 4000K / 12W LED with presence sensor.
- Ventilation
- Connectivity

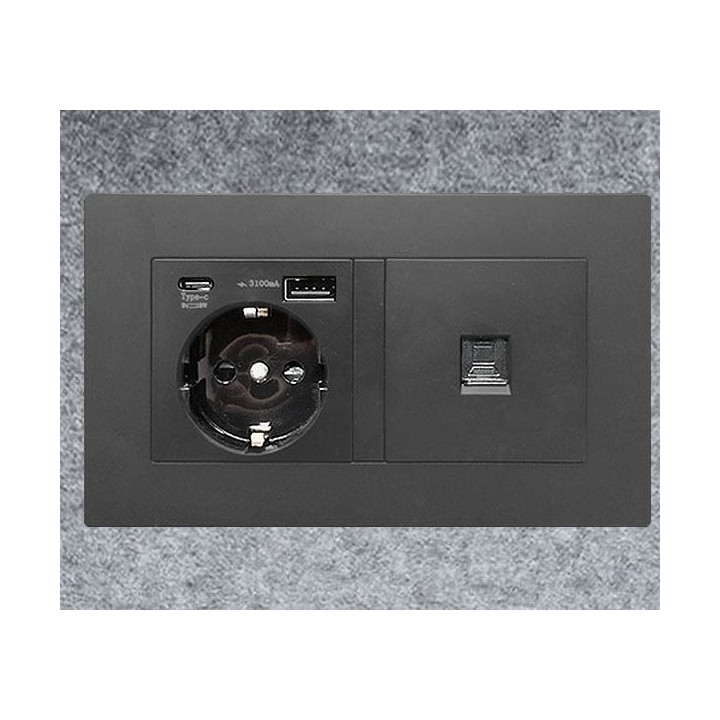

- 1 220v power socket (EU) + USB A and C for charging + RJ45 for data. External connection to the network through a standard connection point.
- Acoustics
- Global reduction of type A speech. (NIC -32 db). From “traffic noise” to “library whisper”
- Mounting
- Manufactured by Euromof.
