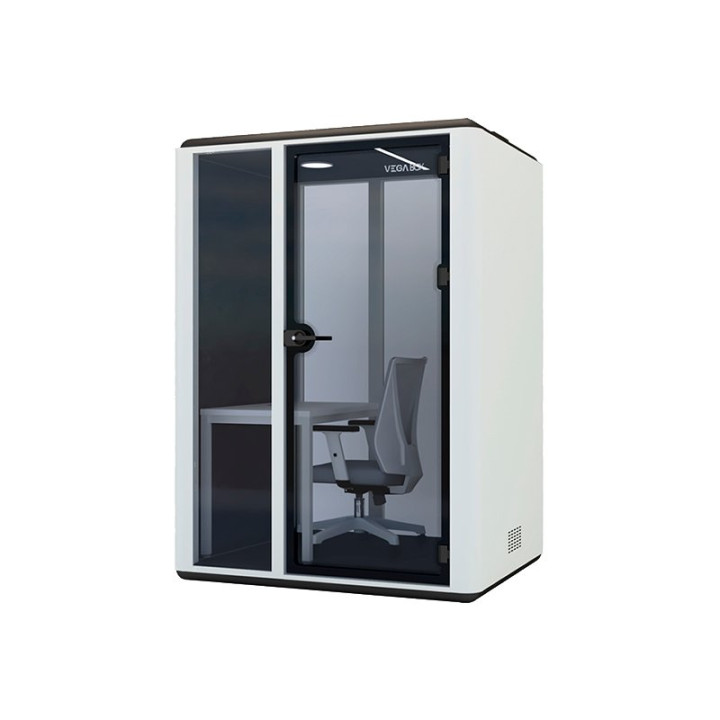

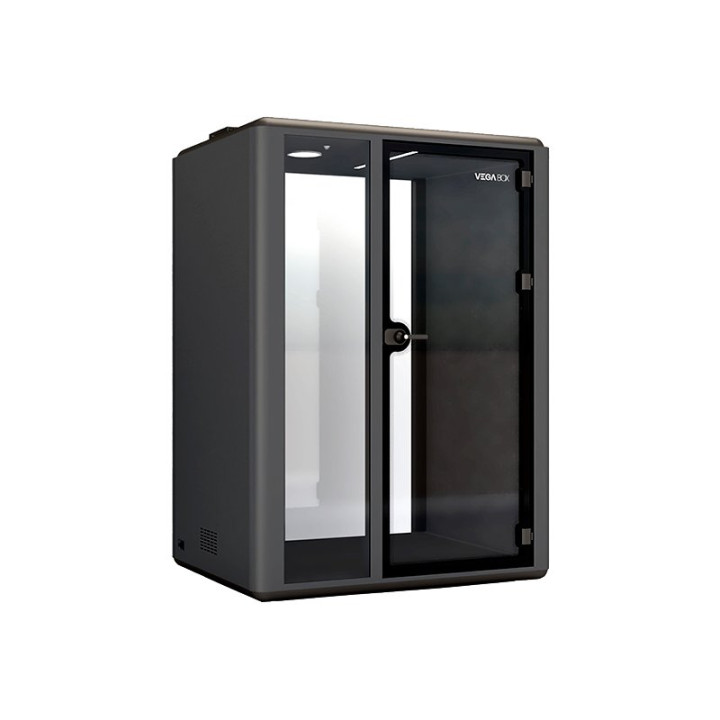

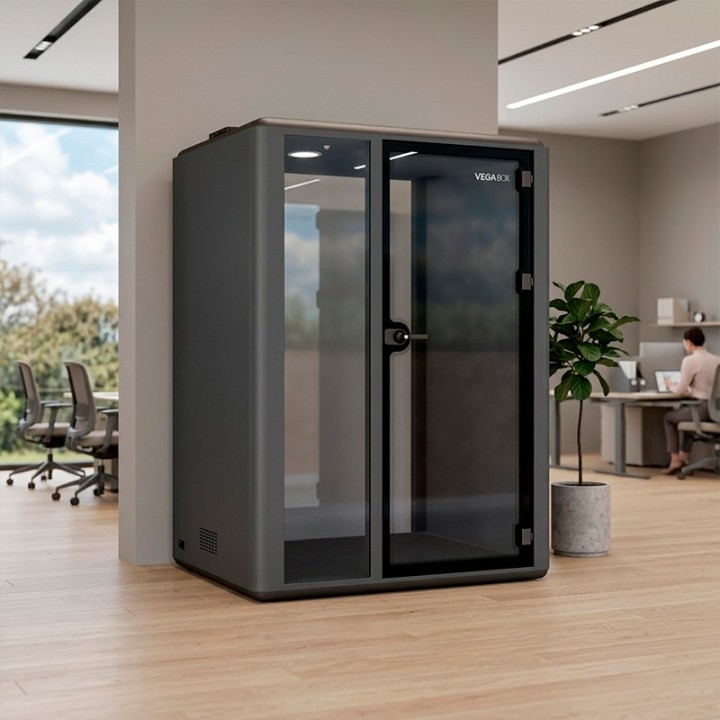

Vega Box 2 acoustic booth by Euromof
Key features
Dimensions
- External dimensions: 158 x 129 x 230 cm (LxWxH)
- Interior dimensions: 145 x 124 x 200 cm (LxWxH)
Materials and finishes
- Extruded aluminum alloy and high-quality 2 mm thick cold-rolled steel panels. Powder-coated.

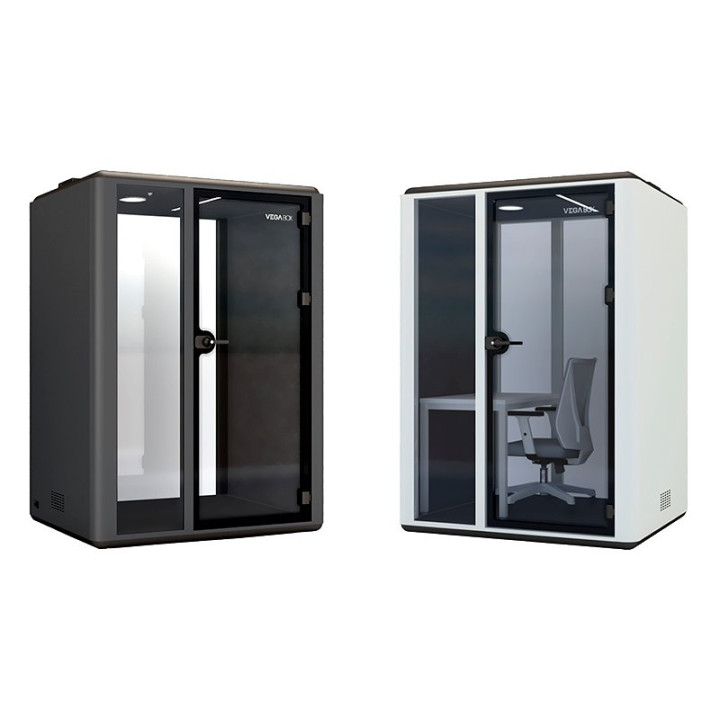

- epoxy finish in white or anthracite.
- Steel and aluminum frames, filled with thermal and acoustic insulation foam panels.
- 16 mm reinforced plywood floor over a steel frame and beams. Upholstered with high-volume, short-pile, antistatic carpeting.
- 10mm clear tempered glass on an aluminum and steel frame.
- *The finishes shown in the photographs may have a slight variation in color/tone compared to the originals.
Ergonomics and mechanisms
- 10mm clear tempered glass with acoustic enhancement properties, mounted in an aluminum frame. Lockable crank handle with deadbolt mechanism and interior latch.
- 2 silent ceiling-mounted fans with adjustable flow intensity + extractor. Approximate air flow rate 130 m3/h.
Configuration and use
- WS Table (optional)
- Table and chair not included, optional, please contact us.
Delivery and condition
- Optimized for easy assembly. Can be assembled and disassembled in 50 minutes by two people.
- Delivered disassembled with assembly on the peninsula
- Condition: New.
Other details
- Measures
- Floor area: 2.00 m²
- Door clearance: 81 cm
- Total Weight: 370 Kg
- External structure
- Internal structure
- Visible coating with high-density 12 and 9 mm PET sheets with high absorption quality and acoustic improvement.
- anti-stain.
- Door
- Back wall
- A work table can be added to the interior of the cabin to transform it into a Vega Work Station.
- 116 x 57 cm table made of 3 cm thick white laminate. Attached to the frame using metal brackets.
- Lightning
- 1 LED spotlight diameter 22 cm, 4000 K / 12 W + 1 elongated 9 W LED, with presence sensor
- Ventilation
- Connectivity

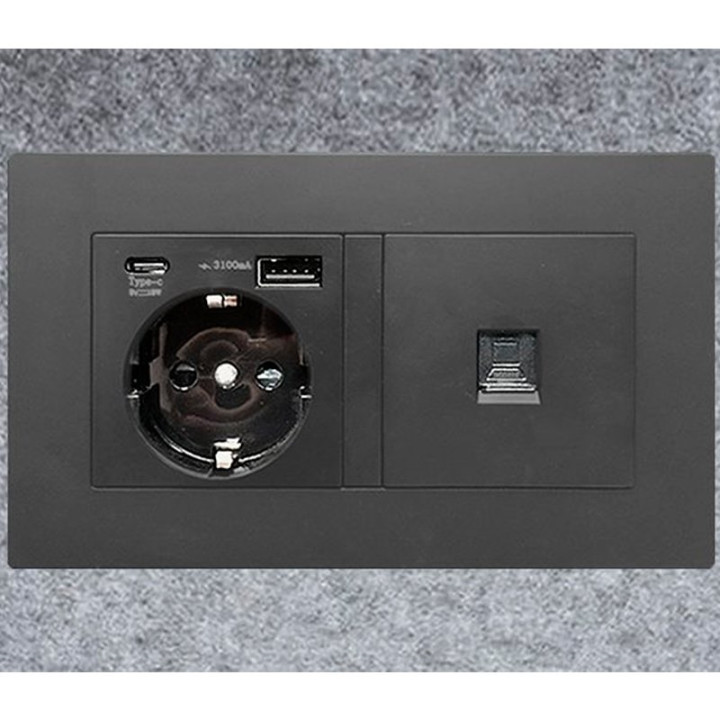

- 1 220V (EU) power outlet + USB A and C charging ports + RJ45 data port. External power connection via standard connection point.
- Acoustics
- Global reduction of type A speech (NIC -32 dB). From “traffic noise” to “library whisper”
- Mounting
- Manufactured by Euromof.
