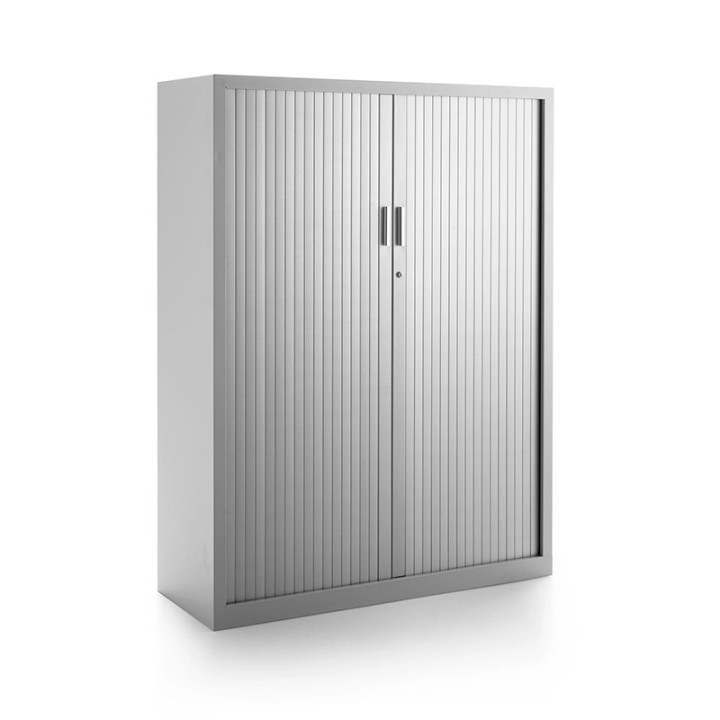

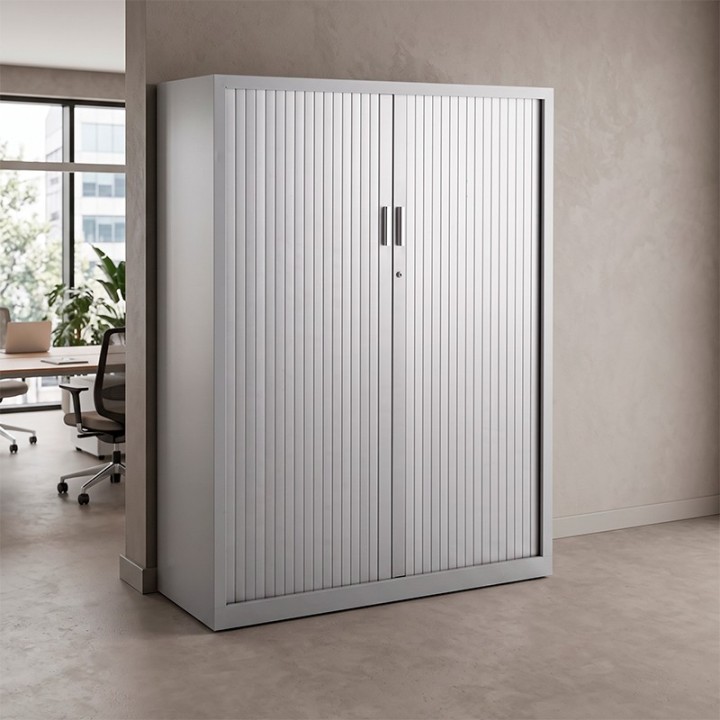

The FORMA 5 metal tambour-door cabinet is a compact filing solution for offices and circulation areas, providing full access without requiring front clearance for hinged doors.
It includes the standard metal shelf set recommended for each height and allows the cabinet frame finish to be combined with several tambour colours.
Product information
Key features

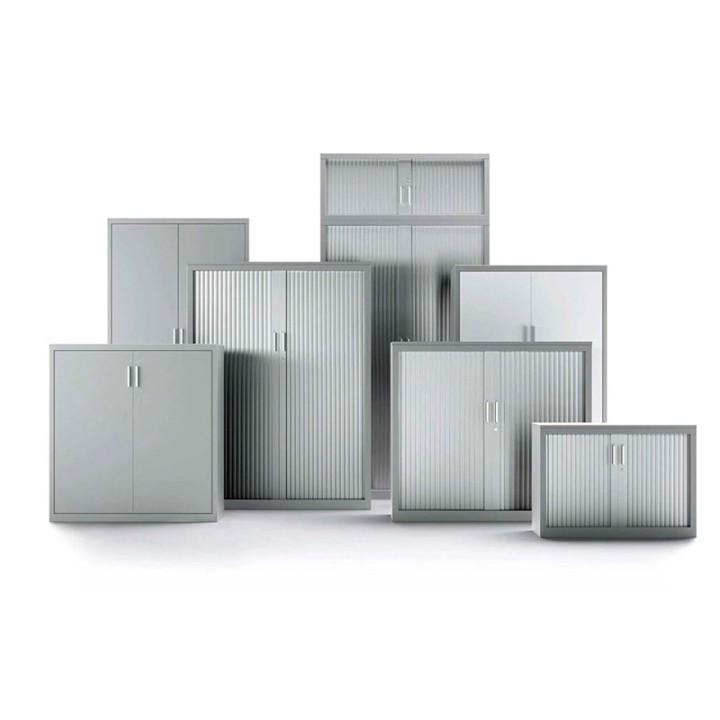

✓Dimensions
- 71 cm high: 80 or 120 cm wide x 45 cm deep.
- 106 cm high: 100 or 120 cm wide x 45 cm deep.
- 160 cm high: 100 or 120 cm wide x 45 cm deep.
- 198 cm high: 100 or 120 cm wide x 45 cm deep.
✓Materials and construction
- Cabinet body made from low-carbon cold-rolled sheet steel, 0.8 to 1.2 mm thick depending on the component.
- Epoxy powder coating polymerised at 220 °C, with an average coating thickness of approximately 100 microns.
- Welded construction for rigidity and stability.

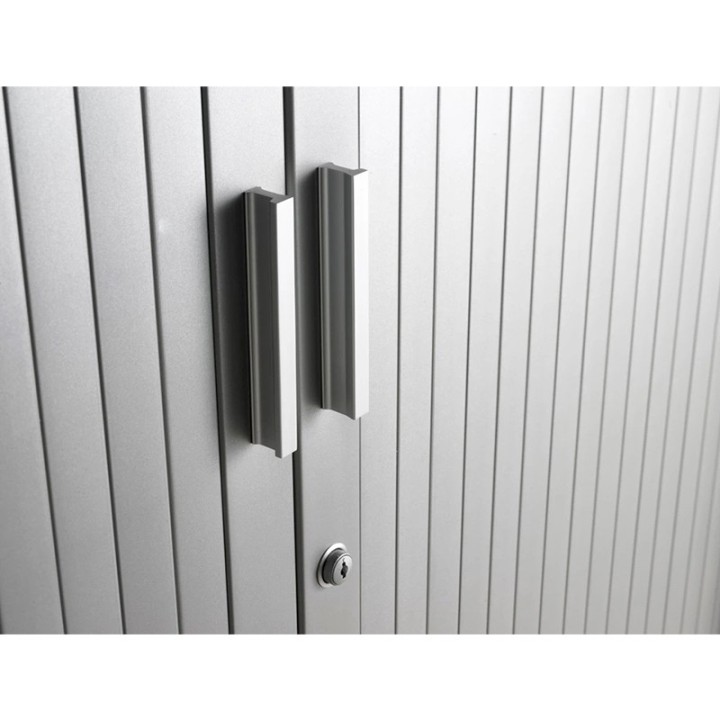

✓Tambour and operation
- Two tambour sections with eight or ten slats depending on cabinet width.
- Aluminium terminal slat coated with polyamide and fitted with glides for smooth travel.
- Lubricated polypropylene guides for smooth and comfortable operation.
✓Configuration and finishes
- Frame: Polar White 10, Silver Grey 0P or Dark Grey 0O.
- Tambour: Polar White 10, Silver Grey 0P, Dark Grey 0O, Maple 11, Beech 12, Oak 0R or Walnut 0J.
- The selected size and finishes determine the exact FORMA 5 manufacturing reference.

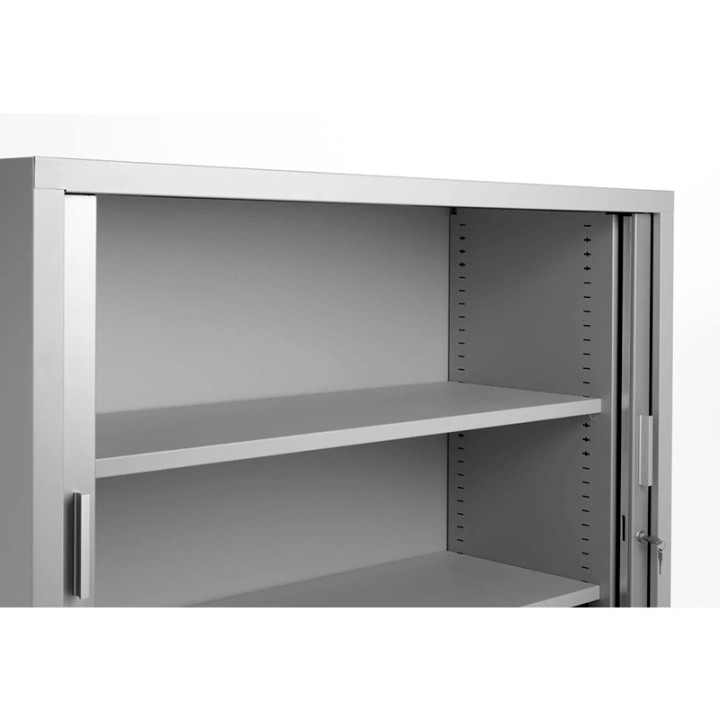

✓Included shelves
- 71 cm height: 1 metal shelf.
- 106 cm height: 2 metal shelves.
- 160 cm height: 3 metal shelves.
- 198 cm height: 4 metal shelves.

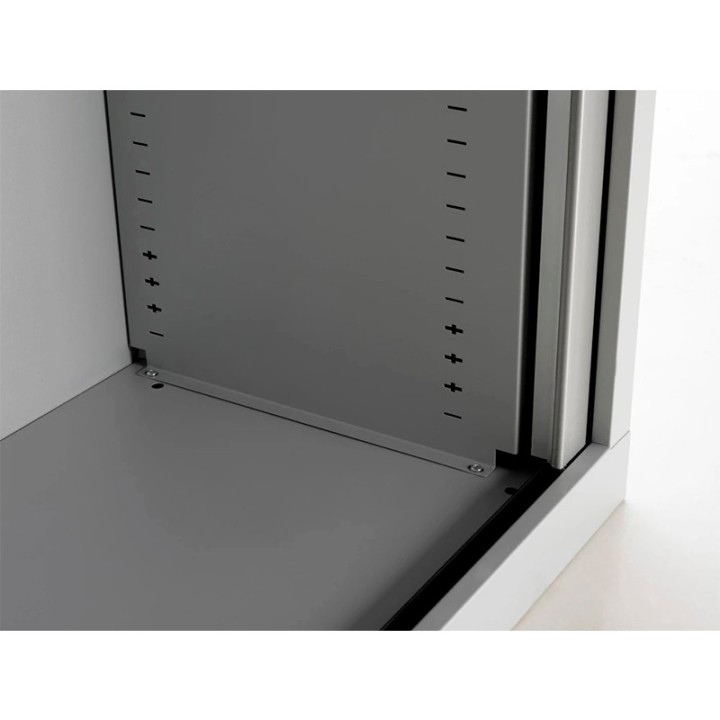

- Shelves are adjustable in 25 mm increments and support up to 80 kg of evenly distributed load.
✓Delivery and condition
- New FORMA 5 product.
- The standard shelf set is included in the price of every combination.
- Configuration supplied according to the selected size, frame finish and tambour colour.
Finish note
On-screen colours may vary slightly from the actual finish.
